LS型螺旋輸送機

LS型螺旋輸送機概述

    LS型螺旋輸送機是GX型螺旋輸送機的換代產品。這種機型可靠性高，壽命長，適應性強，安裝維修方便。您可以根據您的產量的大小選著合適的機型。是按照J(rèn)B/T7679-95《螺旋輸送機》標準設計制造。頭部及尾部軸承移至殼體外，吊軸承采用滑動軸承，沒有防塵密封裝置，軸瓦一般采用粉末冶金，輸送水泥采用毛氈軸瓦，吊軸和螺旋軸采用滑塊連接，拆卸螺旋時，不用移動驅動裝置，拆卸吊軸承時不用移動螺旋，不拆卸蓋板可以潤滑吊軸承。
Product overview
   Type LS screw conveyor is the replacement of the GX type screw conveyor.This model has high reliability, long life, strong adaptability, easy installation and maintenance.You can according to the size of your production to choose the suitable model.Is according to JB/T7679-95 standard design and manufacture of screw conveyor.Head and tail bearing moved to the outside shell, suspension bearing adopts the sliding bearing, no dust sealing device, commonly used bearing shell powder metallurgy, transport cement adopts the felt pad, hoisting shaft and propeller shaft connected by sliding block, remove the screw, no mobile device drivers, removing suspension bearing without moving screw, can not remove the cover plate bearing lubrication.

LS型螺旋輸送機工作原理

Working principles
    LS型螺旋輸送機旋轉的螺旋葉片將物料推移而進行螺旋輸送機輸送，使物料不與螺旋輸送機葉片一起旋轉的力是物料自身重量和螺旋輸送機機殼對物料的摩擦阻力。螺旋輸送機旋轉軸上焊的螺旋葉片，葉片的面型根據輸送物料的不同有實體面型、帶式面型、葉片面型等型式。螺旋輸送機的螺旋軸在物料運動方向的終端有止推軸承以隨物料給螺旋的軸向反力，在機長較長時，應加中間吊掛軸承。

   Type LS screw conveyor rotating spiral blade for screw conveyor conveying the material goes on, the material is not spinning force with the blades of screw conveyor is its own weight and screw conveyor casing material friction resistance of the material.Screw conveyor on the axis of rotation welding of spiral vane, the face of the blade type according to the different type has a solid surface of conveying material, belt type, such as blade surface type.Screw conveyor screw axis of the terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, the captain is longer, should add hanging bearing in the middle.

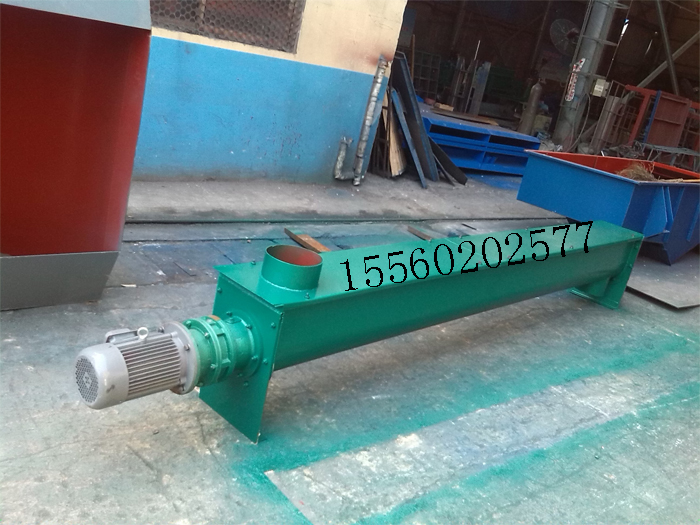

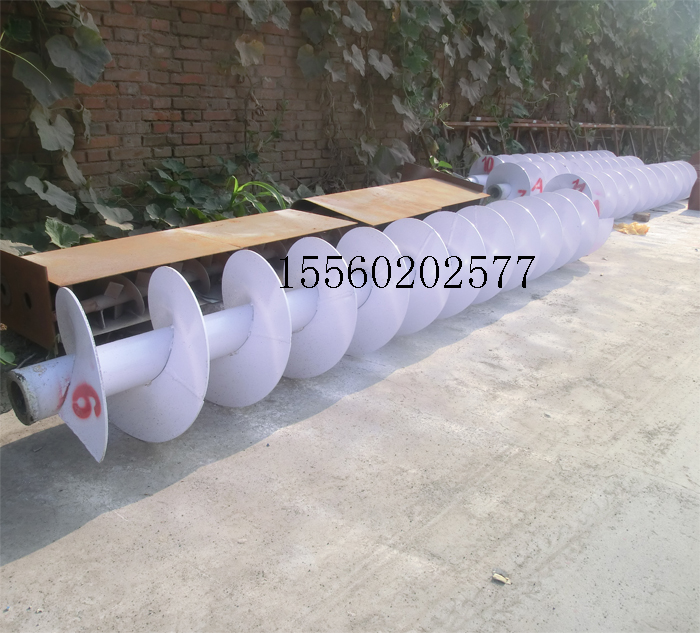

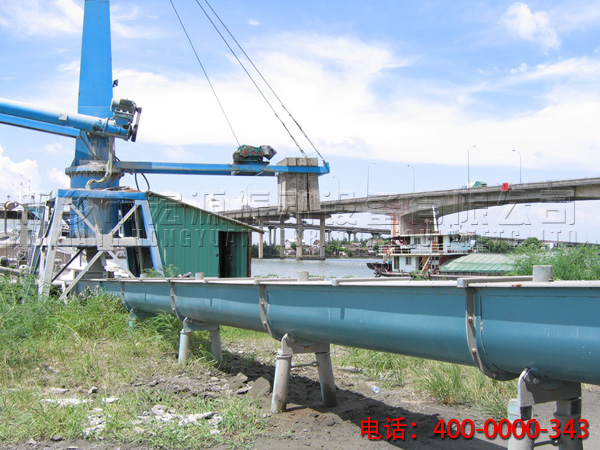

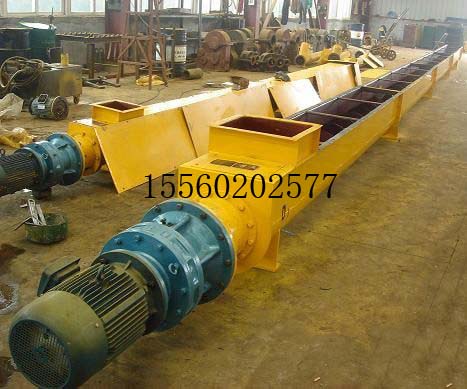

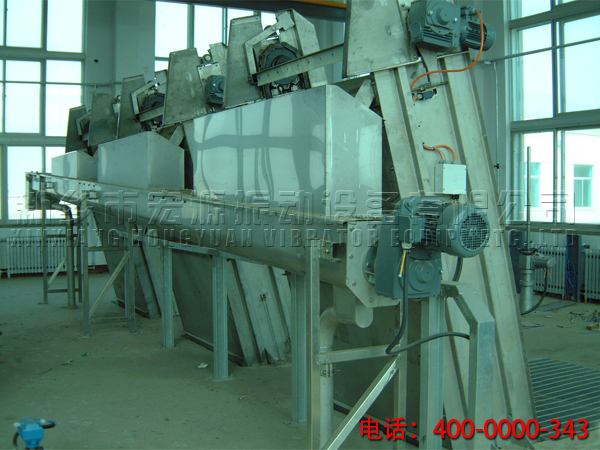

LS型螺旋輸送機實物拍攝

Photos

LS螺旋輸送機主要特點

    螺旋輸送機廣泛應用于各行業，如建材、化工、電力、冶金、煤炭、糧食等行業，適用于水平或傾斜輸送粉狀、粒狀和小塊狀物料，如煤、灰、渣、水泥、糧食等，物料溫度小于200。C。螺旋輸送機不適于輸送易變質的、粘性大的、易結塊的物料。
    注;此類螺旋輸送機可以根據客戶不同生產情況和生產目的來定制。生產材料可以為全碳鋼，部分不銹鋼，以及全不銹鋼為主。對食品衛生有要求的企業推薦主材不銹鋼，無要求可以采用碳鋼。
LS/GX系列螺旋輸送機工作特點:
    1、承載能力大、安全可靠。
    2、適應性強、安裝維修方便、壽命長。
    3、整機體積小、轉速高、確保快速均勻輸送。
    4、密封性好、外殼采用無縫鋼管制作，端部采用法蘭互相連接成一體，剛性好。
Features
Screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, food and other industries, applicable to horizontal or oblique conveying powder, granulated and small lump materials, such as coal, ash, slag, cement, food, etc., the material temperature less than 200.C.Screw conveyor is not suitable for transportation of perishable materials, big viscosity, easy to agglomerate.
Note;This kind of screw conveyor can according to customer's different to customize the production situation and production purpose.Part production material for all carbon steel, stainless steel, and stainless steel.With food hygiene requirements of enterprise recommend stainless steel material, no request can use carbon steel.
The LS/GX series screw conveyor working characteristics:
1, large carrying capacity, safe and reliable.
2, strong adaptability, easy installation and maintenance, long service life.
3, the machine is small in size, high speed, ensure rapid delivery uniformity.
4, good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.

LS/GX系列螺旋輸送機產品特點

    1、高效率的輸送：小直徑、高轉速、變螺距的螺旋體設計，確保產品在工作過程中順暢、快速、均勻上料。
    2、隨意的布置：輸送機的外殼采用優質無縫鋼管通過法蘭各段連接為整體，整體剛性好，無論是水平，還是大傾角均可連續輸送，并可直接與其配套的設備連接固定，無需地基基礎，充分利用空間，移動、拆裝十分方便。
    3、可靠的密封：潤滑密封可靠無滲漏，既無浪費物料現象，又創造了良好的工作環境。
    4、多元化的聯接：進、出料口可采用萬向節、布袋、法蘭聯接方式，還可與我廠生產的蝶閥、插板閥組合聯接。
    5、創新的設計：先進合理的設計，結合先進制造工藝和完善的質量保證體系，使其具有體積小，承載轉矩大、噪音低、不滲油等顯著優點。

Characteristics：
1, high efficiency of delivery: small diameter, high speed, varying pitch helix design, ensure that the product in the process of work smooth, rapid and uniform loading.
2, random arrangement: conveyor of the shell is made of high quality seamless steel tube by flange for whole paragraphs connection, rigid good, the whole level, or can be continuous transmission of large dip Angle, and can be connected directly with matching equipment fixed, without foundation, make full use of space, mobile, tear open outfit is very convenient.
3, reliable sealing, lubrication reliable sealing with no leakage, no waste of materials, and created a good working environment.
4, diversified connection: inlet and discharging mouth can use universal joint, bag, flange connection, but also with our factory production of butterfly valve, flashboard valve combination connection.
5, innovative design, advanced and reasonable design, combined with advanced manufacturing technology and perfect quality assurance system, make it has small volume, carrying large torque, low noise, low permeability oil etc.
技術參數：
Parameter：

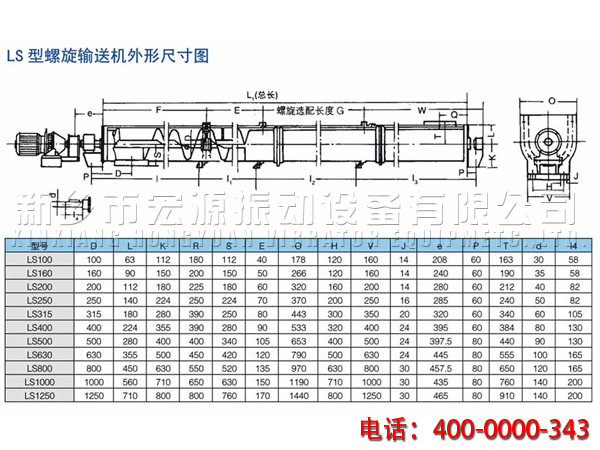

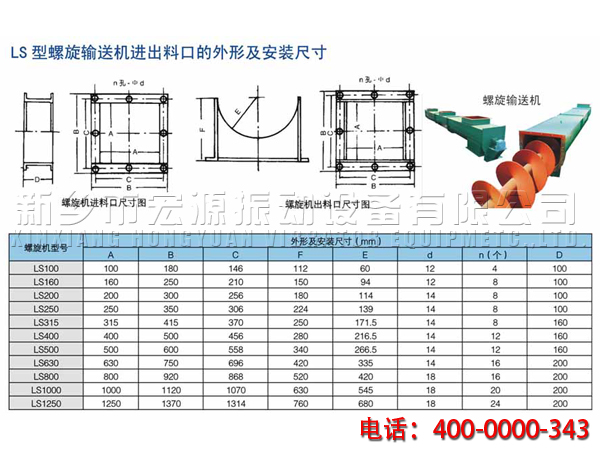

LS/GX系列螺旋輸送機外形尺寸：

    ★我公司可根據用戶需要設計制造特殊型號規格的輸送機。
    ★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
    友情提示:螺旋輸送機不宜輸送易變質的、粘性大的、易結塊的物料，因?yàn)檫@些物料在輸送時會粘結在螺旋上，并隨之旋轉而不向前移動或者在吊軸承處形成物料的積塞，而使螺旋機不能正常工作。LS型螺旋機螺旋直徑從200毫米到500毫米，共有五種規格，長度從4米到70米，每隔0.5米一檔，選型時符合標準公稱長度，特殊需要可在選配節中另行提出。
★ my company can design and manufacture according to user needs special specifications of the conveyor.
★ for all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
Helpful hints: screw conveyor is unfavorable and transportation of perishable materials, big viscosity, easy to agglomerate, because these materials in the transmission will be binding on the screw, and then rotate and does not move forward or in suspension bearing formation material product plug, and make the screw machine can't work normally.LS screw machine screw diameter from 200 mm to 500 mm, with a total of five kinds of specifications, the length from 4 meters to 70 meters, one every 0.5 meters, conform to the standard model selection of the nominal length, special needs can be separately in the matching section is put forward.
